U3, U5, U19 PINOUTS ON PAGE 8

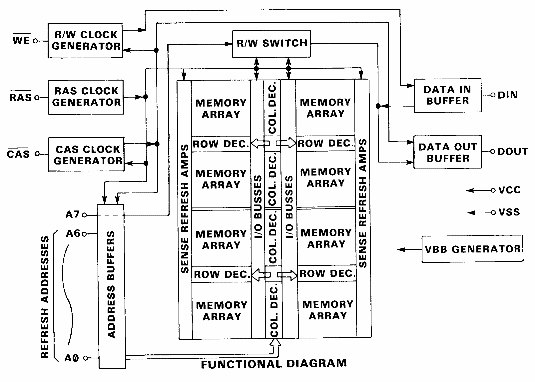

PIN CONFIGURATION U11-18 64K DYNAMIC RAM 901505-01

COMMODORE PART NUMBER APPROVED SOURCE OF SUPPLY VENDOR PART NUMBER ACCESS TIME (ns) CYCLES (ns) POWER ACTIVE (MW) STANDBY (MAX)(MW) 901505-01 HITACHI HM4864-3 200 335 330 20 901505-01 NEC µPD4164-2 200 375 250 28 901505-01 MITSUBISHI M5K416NS-20 200 330 275 28 901505-01 MOSTEK MK456N-20 200 345 300 22 901505-01 OKI MSM3764-20 200 330 248 23 901505-01 HITACHI HM4864P-3 200 335 330 20 901505-01 MATSUSHITA (PANASONIC) MN4164P-20 200 330 275 27.5 901505-01 SIEMENS HYB4164-3 200 330 150 20 901505-01 SHARP LH2164-Z1 200 330 248 28 901505-01 HITACHI HM4864AP-3 200 330 242 20 901505-01 TOSHIBA TMM4164AP-20 200 330 275 27

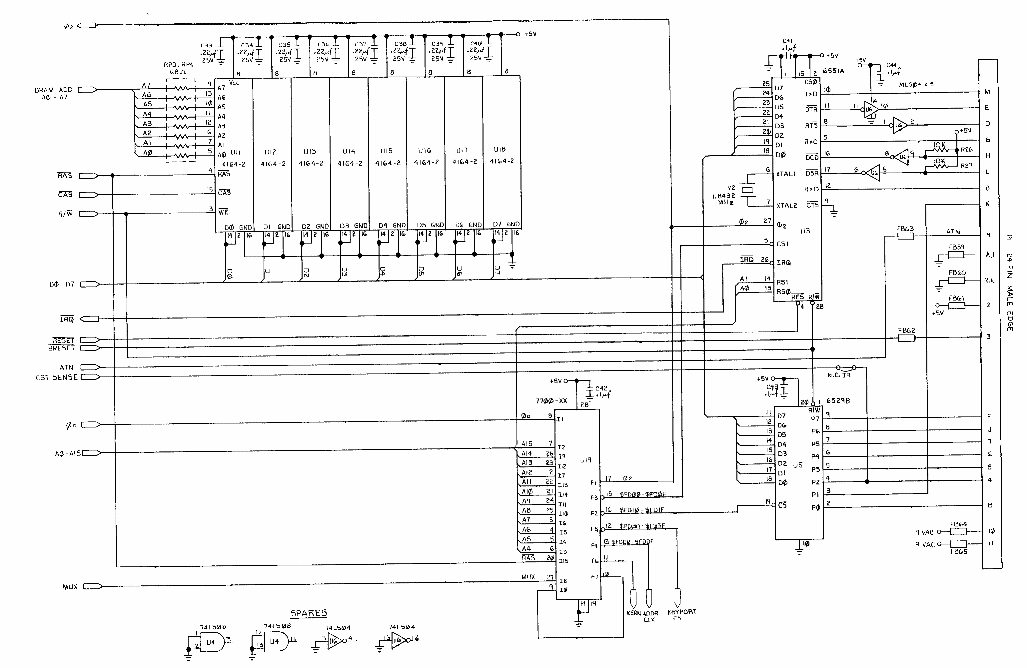

Plus 4 Schematic #310164 (3 of 4)
