- 31414001 SHU DOOR/HUB ASSEMBLY
- -Door Assy w/Frame
- -Hub/Collet Assy
- 31414101 SHU LEFT DISK GUIDE
- 31414201 SHU RIGHT DISK GUIDE
- 31414301 SHU FRONT BEZEL
- 31414401 SHU R/W HEAD ASSEMBLY
- -R/W Head w/Harness
- -Load Arm w/Pad
- 31414501 SHU STEPPER MOTOR ASSEMBLY
- -Stepper Motor w/Harness
- 31414601 SHU D.C. MOTOR
- 31414701 SHU MOTOR CONTROL PCB
- 31414801 SHU HOUSING/SPINDLE ASSY
- -Housing Base
- -Spindle Assy
- -L/R Guide Shafts
- 31414901 SHU DRIVE BELT
- 31415001 SHU WRITE PROTECT SWITCH
- 31415101 SHU HARDWARE
- -Assorted Screws
- 31415201 SHU CAM ACTIVATOR
- 903820-03 UNIV. LAMP HOLDER SET
|
![[Prev]](../../../../images/blue_prev.gif){kind=small}
![[Next]](../../../../images/blue_next.gif){kind=small}
![[Contents]](../../../../images/blue_toc.gif){kind=small}
![[Commodore]](../../../../images/blue_cbm.gif){kind=small}
![[New]](../../../../images/blue_new.gif){kind=small}
![[Search]](../../../../images/blue_search.gif){kind=small}
![[Home]](../../../../images/blue_home.gif){kind=small}

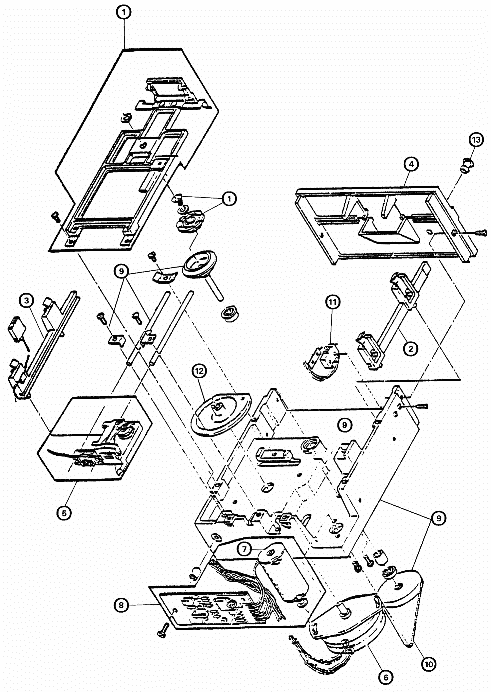

![[Assembly drawing]](large/page_16.gif)
